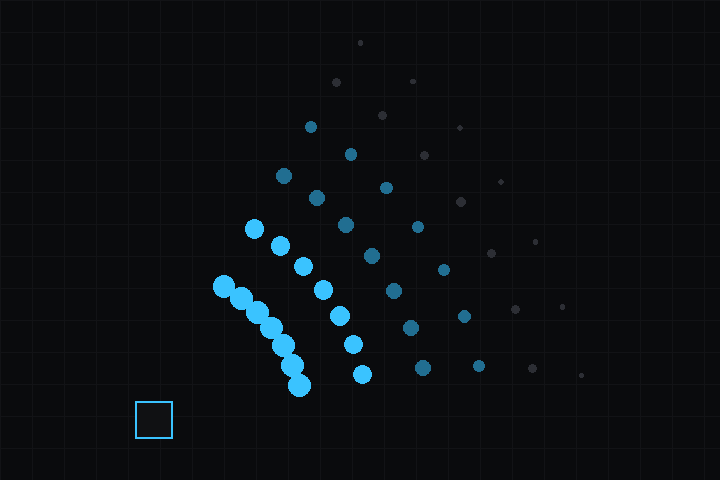

Modular particle emitter (gravity, drag, velocity, lifetime modifiers)
Repository: github.com/dekiengine/deki-particles · Latest release: 0.19.0 · Needs engine 0.19.0+ · Requires: deki-nodegraph, deki-rendering, deki-2d
Install with DekiEditor --packages-add deki-particles <project>, or from the Package Manager. The engine's own components and C++ API are in the Deki docs.
Shown in the editor as Particles.
Components
| Component | Category | Description |
|---|---|---|
| ParticleEmitterComponent | Particles | Spawns and draws particles, following a particle graph asset. |
Feature flags
Parts you can leave out of a build. A feature with a define is switched there; the rest are stripped with their components.
| Feature | Define | Default |
|---|---|---|
| Particle Emitter | DEKI_FEATURE_PARTICLE_EMITTER | on |
Component reference
ParticleEmitterComponent
Spawns and draws particles, following a particle graph asset.
Inspector name: Particle Emitter Component · Category: Particles · Type: DekiParticles::ParticleEmitterComponent
| Property | Type | Default | Constraints | Description |
|---|---|---|---|---|
| sprite | AssetRef (Sprite) | "" | Image drawn for each particle. A small, soft sprite hides the low particle counts a device can afford. | |
| graph | AssetRef (ParticleGraph) | "" | The particle graph asset, which is where emission, velocity, size and colour over lifetime are authored. | |
| maxParticles | int32 | 64 | 0 to 4096 | Ceiling on particles alive at once. The pool is allocated once at this size, so it is a memory decision as much as a visual one. |
| playOnAwake | bool | true | Start emitting as soon as the object comes alive. Off, something has to start it. | |
| looping | bool | true | Restart the effect when it finishes instead of stopping. Off, it plays once and goes quiet. | |
| worldSpace | bool | true | Leave particles where they were born when the emitter moves. Off, they travel with it, which suits a flame carried by a character and not smoke left behind one. | |
| seed | int32 | 0 | 0 to 2.14748e+09 | Random seed. 0 gives a different pattern each run; any other value plays the same pattern every time, which a render test can compare. |
Inherits sortingOrder, ignoreClip, pixelSnap, alphaMode from RendererComponent.
Changelog
0.19.0
Changed
- minEngine 0.19.0: built against engine 0.19.0, whose component metadata records the package each class is in. A build of this package from before does not load and is rebuilt.
Added
- Japanese, Simplified Chinese and Korean: editor/lang/ja.json, zh.json and ko.json translate the names, tooltips and enum values this package's components show in the Inspector.
- The package's editor text goes through the editor's translation (Tr), so it shows in the editor's language. Needs the editor release that adds Localization.h; raise minEngine to it when releasing.
0.18.2
Added
- seed on the Particle Emitter. 0 gives a different pattern each run, as before; any other value plays the same pattern every time, so renders of the effect can be compared.
Fixed
- Effects play on a device. The effect asset's loader and the built-in modifiers registered themselves from static objects in files nothing else referenced, and a firmware links the game from an archive, so the linker dropped them: every emitter had no effect to play and drew nothing, with no error. They are registered by DekiParticlesInitSystem() now (PACKAGE_HAS_SYSTEM_INIT), as deki-fsm does.
- Particles are drawn the right way up. A particle that moved up in the world was drawn moving down, so a fountain sprayed toward the ground.
Earlier releases: CHANGELOG.md.
Generated from the package's reflection data (engine 0.19.0). Property names are the keys used in scene files. Renames keep an alias (compatibility).
